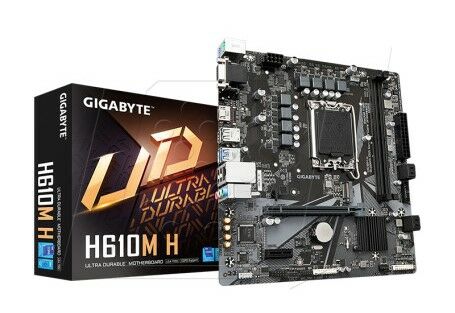

GIGABYTE H610M-H INTEL H610 1700 DDR5 5600MHZ

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and
12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Intel® H610 Express Chipset
13th Generation Intel® Core™ i9/i7 processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
4 x SATA 6Gb/s connectors
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available
through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
iTE® I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Micro ATX Form Factor; 23.0cm x 21.5cm
Support for Windows 11 64-bit
Support for Windows 10 64-bit

İşlemci Soket Tipi	1700
Chip Set	Intel H610
Ram Slot Sayısı	2 Adet
Max Ram Desteği	64GB
RAM Tipi	DDR5
Ram Frekans Hızı	5600 MHz,5200 MHz,4800 MHz,4400 MHz
İşlemci Desteği	Intel Core i3,Intel Core i9,Intel Pentium,Intel Celeron,Intel Core i7,Intel Core i5
Anakart Boyutu	Micro ATX
USB 3.2	4 Adet
USB 3.1	Yok
USB 3.0	Yok
USB 2.0	8 Adet
Bluetooth	Yok
PCI Express 4.0 x16	Yok
PCI Express 3.0 x16	1 Adet
PCI Express 2.0 x16	1 Adet
PCI Express x16	Yok
PCI Express x1	1 Adet
M.2 Slotu	1 Adet
Sata 6Gb/s	4 Adet
D-Sub	Var
HDMI	Var
Lan Hızı	10/100/1000Mbps
Ses Chip Set	Realtek ALC887
Ses Kanal Sayısı	7.1 Kanal
Satış Garanti Süresi (ay)	24
EAN	4719331854041

Ürün Adı: GIGABYTE H610M-H INTEL H610 1700 DDR5 5600MHZ

Ürün Kodu: H610M-H
