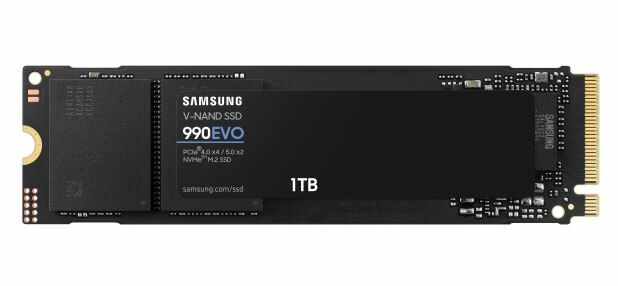

SAMSUNG MZ-V9E1T0BW Specifications

Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
Sequential Read
Up to 5,000 MB/s * Performance may vary based on system hardware &
configuration
Sequential Write
Up to 4,200 MB/s * Performance may vary based on system hardware &
configuration
Warranty
5-year Limited Warrantyor 600 TBW Limited Warranty
Application
Client PCs
Weight
Max 9.0g Weight
Full specifications
General Feature
Application
Client PCs
Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be
less (due to formatting, partitioning, operating system, applications or
otherwise)
Form Factor
M.2 (2280)
Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
Dimension (WxHxD)
80 x 22 x 2.38 mm
Weight
Max 9.0g Weight
Storage Memory
Samsung V-NAND TLC
Controller
Samsung in-house Controller
Cache Memory
HMB(Host Memory Buffer)
Special Feature
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 5,000 MB/s * Performance may vary based on system hardware &
configuration
Sequential Write
Up to 4,200 MB/s * Performance may vary based on system hardware &
configuration
Random Read (4 KB, QD32)
Up to 680,000 IOPS * Performance may vary based on system hardware
&
configuration
Random Write (4KB, QD32)
Up to 800,000 IOPS * Performance may vary based on system hardware
&
configuration
Random Read (4 KB, QD1)
Up to 20,000 IOPS * Performance may vary based on system hardware
&
configuration
Random Write (4 KB, QD1)
Up to 90,000 IOPS * Performance may vary based on system hardware
&
configuration
Environment
Average Power Consumption (system level)
*Average: Read 4.9 W / Write 4.5 W* Actual power consumption may vary
depending on system hardware & configuration
Power consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system
hardware & configuration
Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system
hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ? Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Accessories
Installation Kit
Not Available
Software
Management SW
Magician Software for SSD management
Warranty
5-year Limited Warrantyor 600 TBW Limited Warranty

Kapasite	1 TB
Sıralı Okuma Hızı	5000MB/s
Sıralı Yazma Hızı	4200MB/s
Arabirim	PCIe
Disk Tipi	M2
İncelik	2.38 mm
Satış Garanti Süresi (ay)	24
EAN	8806095300276

Ürün Adı: SAMSUNG MZ-V9E1T0BW Specifications

Ürün Kodu: MZ-V9E1T0BW
