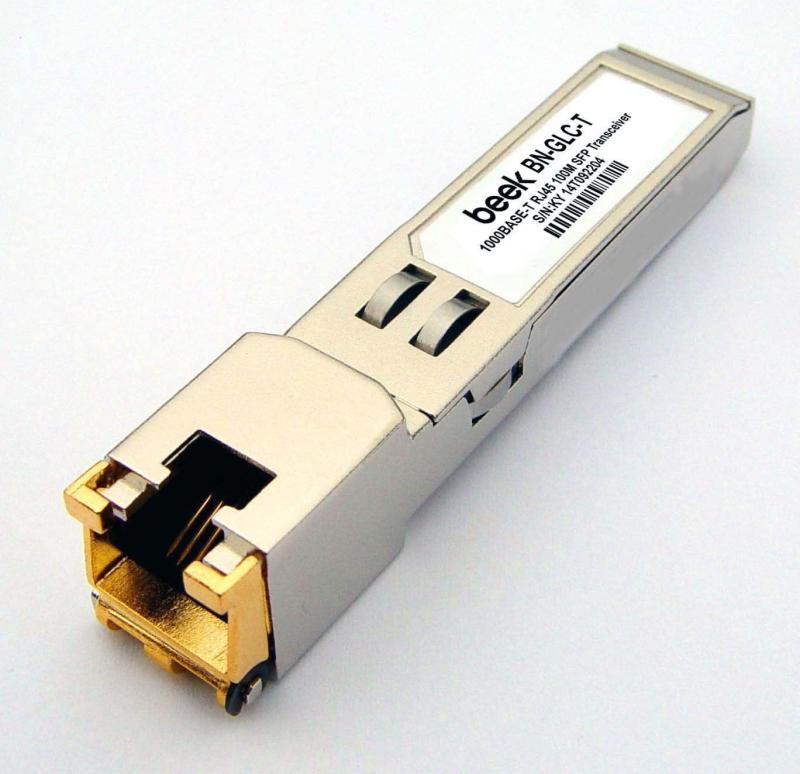

BEEK 1000Base-T RJ45 100M SFP Transceiver, BN-GLC-T
2.954,90 TL
Kdv Dahil (TEK ÇEKİM FİYATIMIZDIR)
Havale ile
2.895,80 TL
(%2,00 havale indirimi)
Kategori
Marka
Stok Kodu
BN-GLC-T
Havale
2.895,80 TL
(%2,00 havale indirimi)
Fiyat
2.504,15 TL + KDV
Cisco, Extreme, NORTEL, ZTE, Huawei, Alcatel, ZyXEL, Netgear, AVAYA,
Juniper, Linksys, Enterasys ürünleriyle uyumlu
Up to 1.25Gb/s bi-directional data links
? Hot-pluggable SFP footprint
? Extended case temperature range (0°C to +85°C )
? Fully metallic enclosure for low EMI
? Low power dissipation (1.05 W typical)
? Compact RJ-45 connector assembly
? Access to physical layer IC via 2-wire serial bus
? 1000 BASE-T operation in host systems with SERDES interface
? 10/100/1000Mbps compliant in host systems with SGMII interface
Applications:
? 1Gigabit Ethernet over Cat 5 cable
Standards:
? Compatible with IEEE 802.3z
? Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
Product selection:
Part Number Product Description
BN-GLC-T 1000Mbps only, SERDES interface, Copper SFP with spring latch
Description:
KYOPTO`s SFP-T Copper Small Form Pluggable (SFP)transceivers is high
performance,
performance,
cost effective module compliant with the Gigabit Ethernet and 1000-
BASE-T standards
as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting
1000Mbps datarate
up to 100 meters reach over unshielded twisted-pair category 5 cable.
The module
supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude
Modulation
Modulation
(PAM) signals. All four pairs in the cable are used with symbol rate at
250Mbps on each
pair. The module provides standard serial ID information compliant with
SFP MSA,
which can be accessed with address of A0h via the 2wire serial CMOS
EEPROM
EEPROM
protocol. The physical IC can also be accessed via 2wire serial bus at
address ACh.
I. SFP to Host Connector Pin Out
Pin Symbol Name/Description Note
1 VEET Transmitter ground (common with receiver ground) 1
2 TFAULT Transmitter Fault. Not supported
3 TDIS Transmitter Disable. PHY disabled on high or open 2
4 MOD_DEF(2) Module Definition 2. Data line for serial ID 3
5 MOD_DEF(1) Module Definition 1. Clock line for serial ID 3
Juniper, Linksys, Enterasys ürünleriyle uyumlu
Up to 1.25Gb/s bi-directional data links
? Hot-pluggable SFP footprint
? Extended case temperature range (0°C to +85°C )
? Fully metallic enclosure for low EMI
? Low power dissipation (1.05 W typical)
? Compact RJ-45 connector assembly
? Access to physical layer IC via 2-wire serial bus
? 1000 BASE-T operation in host systems with SERDES interface
? 10/100/1000Mbps compliant in host systems with SGMII interface
Applications:
? 1Gigabit Ethernet over Cat 5 cable
Standards:
? Compatible with IEEE 802.3z
? Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
Product selection:
Part Number Product Description
BN-GLC-T 1000Mbps only, SERDES interface, Copper SFP with spring latch
Description:
KYOPTO`s SFP-T Copper Small Form Pluggable (SFP)transceivers is high
performance,
performance,
cost effective module compliant with the Gigabit Ethernet and 1000-
BASE-T standards
as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting
1000Mbps datarate
up to 100 meters reach over unshielded twisted-pair category 5 cable.
The module
supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude
Modulation
Modulation
(PAM) signals. All four pairs in the cable are used with symbol rate at
250Mbps on each
pair. The module provides standard serial ID information compliant with
SFP MSA,
which can be accessed with address of A0h via the 2wire serial CMOS
EEPROM
EEPROM
protocol. The physical IC can also be accessed via 2wire serial bus at
address ACh.
I. SFP to Host Connector Pin Out
Pin Symbol Name/Description Note
1 VEET Transmitter ground (common with receiver ground) 1
2 TFAULT Transmitter Fault. Not supported
3 TDIS Transmitter Disable. PHY disabled on high or open 2
4 MOD_DEF(2) Module Definition 2. Data line for serial ID 3
5 MOD_DEF(1) Module Definition 1. Clock line for serial ID 3
| Satış Garanti Süresi (ay) | 24 |
| EAN | 8693661774957 |
Ürün Adı: BEEK 1000Base-T RJ45 100M SFP Transceiver, BN-GLC-T
Ürün Kodu: BN-GLC-T
| EAN | : | 8693661774957 |
| Satış Garanti Süresi (ay) | : | 24 |
