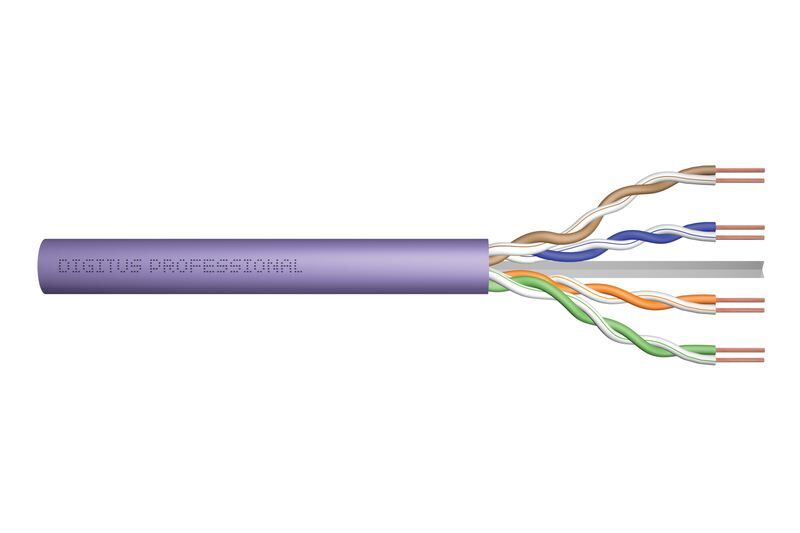

DIGITUS DK-1613-VH-5 CAT 6 U-UTP250 MHz Eca (EN 50575), AWG 23/1, 500 m drum, simplex, color

CAT 6 U-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 500 m
drum, simplex, color purple
Ağınız için mükemmel performans ve bağlantı kalitesi.
1GBit Ethernet 250 MHz transmission frequency
PoE Power over Ethernet support
CPR class Eca The Digitus® Professional
Cat.6 U/UTP installation cable is characterized by the following cable
construction 4x2x AWG23/1 and reaches a transmission frequency up to
250 MHz. The halogen free cable jacket is conform to the standard IEC
60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable
for building structured cabling in the secondary and tertiary area.
Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN
EN 50288-6-1.
Technical Details
Fiziksel tanım
İzolasyon: HD-PE
Toplam izole iletken sayısı: 8, bükülü 4 çift
Renk kodu: mavi-beyaz,turuncu-beyaz, yeşil-beyaz, kahverengi-beyaz
Bağımsız çift zırh:yok
Toplam ekranlama: yok
Mekanik özellikler Çekme yüklemesi: 150Nmaks.
Elektrik özellikleriOrtalama empedans: 1MHz - 600MHz de
100±5Ohm
Conductor material: Cu, bare
Diameter conductor: 0.55 mm
Nominal cross section conductor: 0.2582 mm²
AWG-size: 23 Conductor
category: Class 1 = solid
Number of cores: 1
Stranding element:Pairs
Core insulation: PE (polyethylene)
Core identification:Colour
Screen over stranding element: None
Screen over stranding:None
Material outer sheath: Polyolefin
Colour outer sheath:Other
Halogen free (acc. EN 60754-1/2): yes
Flame retardant: In accordance with EN 60332-1-2
Low smoke (acc. EN 61034-2): yes
Outer diameter approx.: 6.2 mm
Permitted cable outer temperature, in
movement: -20 °C … 60 °C
Permitted cable outer temperature, fixed: -20 °C … 75 °C
Category: 6
NVP value: 69 %

Kablo Türü	CAT5 KABLO,CAT6 KABLO
Satış Garanti Süresi (ay)	0
EAN	4016032367802,4016032343660

Ürün Adı: DIGITUS DK-1613-VH-5 CAT 6 U-UTP250 MHz Eca (EN 50575), AWG 23/1, 500 m drum, simplex, color

Ürün Kodu: DK-1613-VH-5
