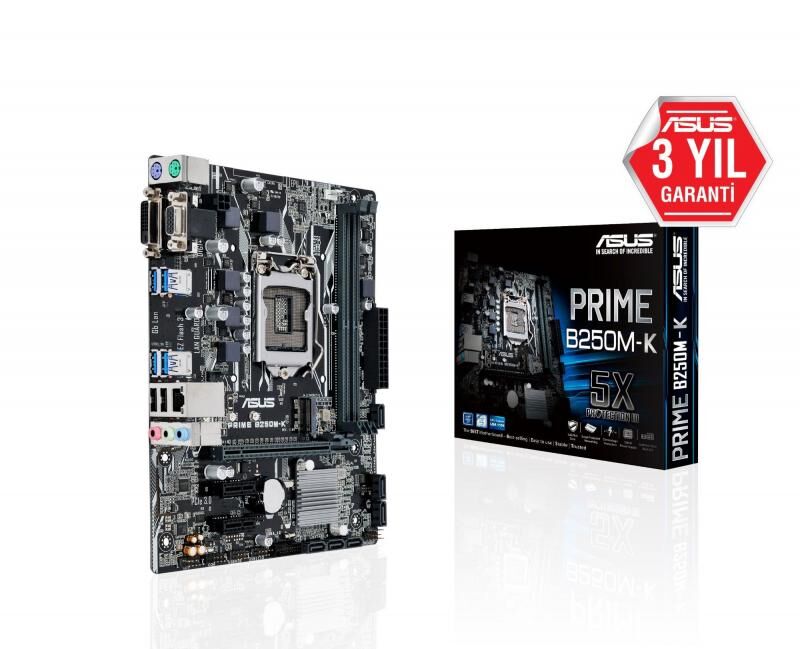

ASUS Intel B250 1151 DDR4 2400MHz DVI/VGA Anakart

Build in Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™
i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports
Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology
2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU
support list
Chipset
Build in Intel® B250
Memory
2 x DIMM, Max. 32GB,
DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory
Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Refer to
www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to
Intel® chipset limitation, DDR4 2400MHz memory frequency is only
supported by 7th Generation Intel® processors. Higher memory modules
will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel®
chipset limitation, DDR4 2133MHz and higher memory modules on 6th
Generation Intel® processors will run at the maximum transfer rate of
DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel® HD Graphics
support
Multi-VGA output support : DVI-D/RGB ports
- Supports DVI-D
with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max.
resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024
MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD
Technology, Insider™
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
2
x PCIe 3.0/2.0 x1
Storage
Intel® B250 Chipset :
1 x M.2 Socket 3*1,
6
x SATA 6Gb/s port(s), gray,
LAN
Realtek® RTL8111H
Audio
Realtek® ALC887
8-Channel High Definition Audio CODEC
- Supports : Jack-detection,
Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design -
Brighten up your build with the gorgeous illuminated audio trace
path.
- Audio Shielding: Ensures precision analog/digital separation
and greatly reduced multi-lateral interference
- Dedicated audio PCB
layers: Separate layers for left and right channels to guard the
quality of the sensitive audio signals
- Premium Japanese audio
capacitors: Provide warm, natural and immersive sound with exceptional
clarity and fidelity
USB Ports
Intel® B250 Chipset :
6 x USB 3.0/2.0
port(s) (4 at back panel, , 2 at mid-board)
Intel® B250 Chipset :
6 x
USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Special
Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe
Slot prevents damage
- ASUS LANGuard: Protects against LAN surges,
lightning strikes and static-electricity discharges!
- ASUS Overvoltage
Protection: World-class circuit-protecting power design
- ASUS
Stainless-Steel Back I/O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS EPU :
-
EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet
Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS
Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-
ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest
transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O
Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x
D-Sub
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
1
x 8-channel Audio I/O
Internal I/O Ports
1 x USB 3.0 connector(s)
support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
2 x USB
2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket
3 with M Key, type 2242/2260/2280 storage devices support (SATA mode
&
X4 PCIE mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x
4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out
header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power
connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS
jumper(s)
1 x System panel connector
1 x COM port
header
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x
M.2 screws
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0,
WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory
information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating
System
Windows® 10 64-bit
Windows® 8.1 64-bit *2
Windows® 7 32-bit
*2
Windows® 7 64-bit *2
Form Factor
Micro ATX Form Factor
8.9 inch x
7.3 inch ( 22.6 cm x 18.5 cm )
Note
*1 When a device in SATA mode is
installed on the M.2 socket,SATA_1 port cannot be used.
*2 Windows® 8.1
64-bit and Windows® 7 32/64-bit are only supported when using 6th
Generation Intel® Processors.

Soket Cinsi	SOKET 1151
Chip Set	INTEL B250
Form Faktörü	MICRO ATX
RAM Tipi	DDR4
Dahili Grafik	DVI,VGA
RAM Hızı (MHz)	2133,0,2400,0
Maksimum Bellek	32 GB
İşlemci Desteği	7. Nesil Intel Core i7
PCI-Ex16 Slot Sayısı	1
Bellek Yuvası Sayısı	2
Satış Garanti Süresi (ay)	36
EAN	4712900602258

Ürün Adı: ASUS Intel B250 1151 DDR4 2400MHz DVI/VGA Anakart

Ürün Kodu: PRIME-B250M-K
