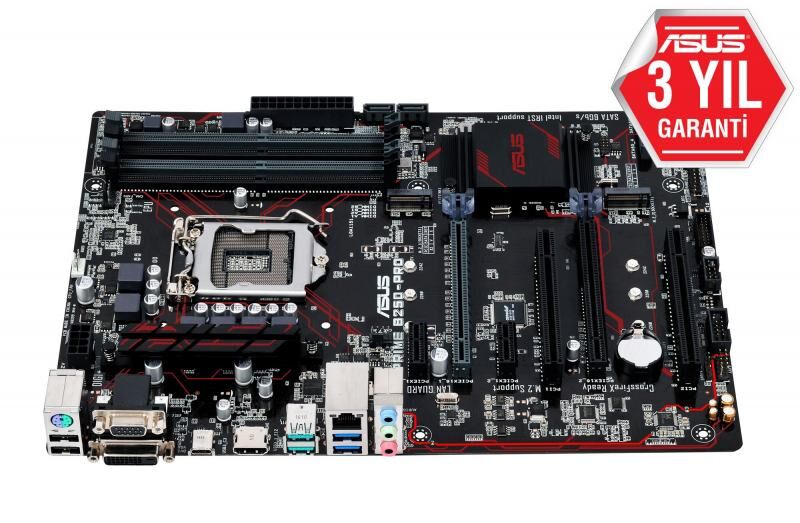

ASUS Intel B250 1151 DDR4 2400MHz HDMI/DVI Gaming Anakart

İşlemci Build in Intel® Socket 1151 for 7th/6th Generation Core™
i7/Core™ i5/Core™ i3/Pentium®/Celeron® İşlemci * Intel® 14 nm CPU'ları
Destekler Intel® Turbo Boost Teknolojisini Destekler 2.0 * Intel ®
Turbo Boost Teknolojisi 2.0 desteği CPU türüne bağlıdır. *Desteklenen
CPU listesi için www.asus.com.tr ziyaret ediniz. Yonga Seti Build in
Intel® B250 Bellek 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC olmayan,
Arabelleksiz Bellek * Intel® Extreme Memory Profile (XMP) Destekler *
Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only
supported by 7th Generation Intel® processors. Higher memory modules
will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel®
chipset limitation, DDR4 2133MHz and higher memory modules on 6th
Generation Intel® processors will run at the maximum transfer rate of
DDR4 2133MHz. Grafik Tümleşik Grafik İşlemcisi - Intel® HD Grafik
desteği Çoklu VGA çıkış desteği : HDMI/DVI ports - Desteklenen
Maksimum HDMI çözünürlüğü 4096 x 2160 @ 24 Hz - Desteklenen Maksimum
DVI çözünürlüğü 1920 x 1200 @ 60 Hz Maksimum paylaşılan bellek 1024
MB Intel® desteği InTru™ 3D, Quick Sync Video, Clear Video HD
Technology, Insider™ Genişleme Yuvaları 1 x PCIe 3.0/2.0 x1 (x16 mode)
2 x PCIe 3.0/2.0 x1 Depolama Intel® B250 Chipset : 6 x SATA 6Gb/s
port(s), Intel® B250 Chipset : 1 x M.2 Socket 3, with M key, type
2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x
M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices
support (PCIE 3.0 x 4 mode)* Intel® Optane™ Memory Ready * LAN Intel®
I219V, Dual interconnect between the Integrated Media Access Controller
(MAC) and Physical Layer (PHY) Anti-surge LANGuard Ses SupremeFX
8-Kanal High Definition Audio CODEC S1220A - Dual Headphone
Amplifiers - Impedance sense for front and rear headphone outputs -
Destekler : Jack-detection, Multi-streaming, Front Panel
Jack-retasking Ses Özelliği : - LED-lit Audio Shielding: Ensures
precision analog/digital separation and greatly reduced multi-lateral
interference, with a gorgeous illuminated trace path - SupremeFX
Shielding Teknolojisi - High quality 120 dB SNR stereo playback output
and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback
*1 Premium Japan-made audio capacitors provides warm, natural, and
immersive sound with exceptional clarity and fidelity USB
Portları Intel® B250 Chipset : 6 x USB 3.1 Gen 1 port(s) (2arka
panelde, , 4 bord ortasında) Intel® B250 Chipset : 6 x USB 2.0 port(s)
(4arka panelde, , 2 bord ortasında) Overclock Özellikleri ROG
CPU-Z Overwolf ASUS´a Özel Özellikler Gamer's Guardian: - ESD Guards on
LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection -
Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM -
SafeSlot GPU Boost ASUS Exclusive Features : - AI Suite 3 - Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS
MyLogo ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM
Fan Xpert 3 Arka Giriş/Çıkış Portları 1 x PS/2 klavye/fare combo
port(s) 1 x DVI 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 2.0 2 x USB
3.1 Gen 1 3 x Audio jack(s) Dahili Giriş/Çıkış Portları 2 x USB 3.0
bağlantıları ek olarak 4 USB 3.0 portları destekler 1 x USB 2.0
bağlantıları ek olarak 2 USB 2.0 portları destekler 1 x TPM
bağlantısı(ları) 1 x AAFP connector 1 x COM port(ları)
bağlantısı(ları) 6 x SATA 6Gb/s bağlantısı(ları) 1 x CPU Fan
bağlantısı(ları) ( x 4 -pin) 1 x M.2 Socket 3 with M key, type
2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x
Chassis Fan bağlantısı(ları) ( x 4 -pin) 1 x M.2 Socket 3 with M key,
type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1
x 24-pin EATX Güç bağlantısı(ları) 1 x 8-pin EATX 12 V Power
connector 1 x Clear CMOS anahtarı(ları) 1 x System panel
connector Aksesuarlar Kullanıcı kılavuzu 2 x SATA 6Gb/s
kablosu(ları) I/O Shield 1 x M.2 Screw Package 1 x Supporting DVD 1 x
ROG Strix stickers 1 x 10-in-1 ROG cable label BIOS 128 Mb Flash ROM,
UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 6.1,
Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan
Control, F3 My Favorites, F12 PrintScreen function, and ASUS DRAM SPD
(Serial Presence Detect) memory information Yönetilebilirlik WfM2.0,
DMI3.0, WOL by PME, PXE Destek Diski Drivers ASUS Utilities EZ
Update Anti-virus software (OEM version) İşletim Sistemi Windows® 10
64-bit Windows® 8.1 64-bit *1 Windows® 7 32-bit *1 Windows® 7 64-bit
*1 *2 Form Faktörü mATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x
21.8 cm ) Not *1 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is
not supported for 8-channel audio and due to Windows 7 limitations,
32-bit playback is unavailable for Windows 7. *2 Windows® 8.1 64-bit
and Windows® 7 32/64-bit are only supported when using 6th Generation
Intel® Processors.

Soket Cinsi	SOKET 1151
Chip Set	INTEL B250
Form Faktörü	MICRO ATX
RAM Tipi	DDR4
Dahili Grafik	VAR
RAM Hızı (MHz)	1333,0,1600,0,2133,0
Maksimum Bellek	64 GB
İşlemci Desteği	4. Nesil Intel Core i7
Bellek Yuvası Sayısı	2
PCI-Ex16 Slot Sayısı	1
HDMI	1
DVI-D	1
Satış Garanti Süresi (ay)	36
EAN	4712900663808

Ürün Adı: ASUS Intel B250 1151 DDR4 2400MHz HDMI/DVI Gaming Anakart

Ürün Kodu: STRIXB250G
