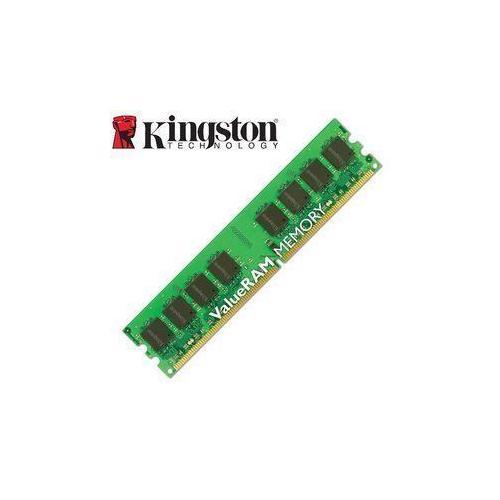

KINGSTON 8GB 1333MHz DDR3 Value PC Kutusuz RAM

8GB 2Rx8 1G x 64-Bit PC3-10600
CL9 240-Pin DIMM
Important Information: The module defined in this data sheet is one of
several configurations available under this part number. While all
configurations are compatible, the DRAM combination and/or the module
height may vary from what is described here.
DESCRIPTION
This document describes ValueRAM's 1G x 64-bit (8GB)
DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on
sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR3-1333
timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact
fingers. The electrical and mechanical specifications are as follows:
FEATURES
- JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
- VDDQ = 1.5V (1.425V ~ 1.575V)
- 667MHz fCK for 1333Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with
starting address '000' only), 4 with tCCD = 4 which does not allow
seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
- Asynchronous Reset
- PCB: Height 1.18' (30mm), double sided component
SPECIFICATIONS
CL(IDD) 9 cycles
Row Cycle Time (tRCmin) 49.5ns (min.) Refresh to Active/Refresh
260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 36ns (min.) Maximum Operating Power
2.460 W*
UL Rating 94 V - 0
Operating Temperature 0o C to 85o C
Storage Temperature -55o C to +100o C
*Power will vary depending on the SDRAM used.

Kapasite	8GB
Bellek Tipi	DDR3
Bellek Hızı	DDR3-1333
RAM Türü	DIMM
Modül İsmi	PC3-10600
CL (CAS) Değeri	9
Voltaj	1.5V
Satış Garanti Süresi (ay)	24
EAN	KIN-PC10600-8G

Ürün Adı: KINGSTON 8GB 1333MHz DDR3 Value PC Kutusuz RAM

Ürün Kodu: KIN-PC10600-8G
