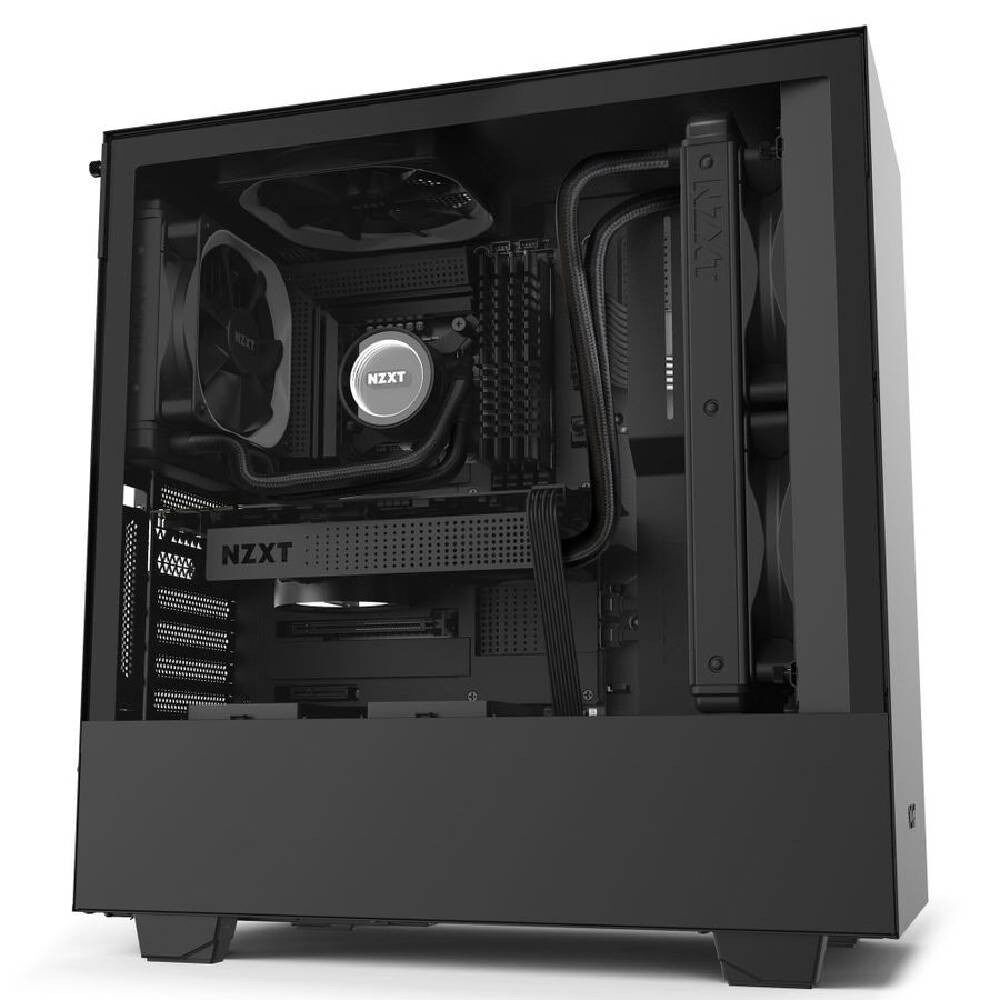

NZXT CA-H510I-B1 H510i Compact Mid Tower Siyah/Siyah Kasa

120mm Aer F Case Fans? 2x LED Strips and Vertical GPU Mount
Dimensions W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
Material(s) SGCC Steel, Tempered Glass
Weight 6.8 kg
Motherboard Support Mini-ITX, MicroATX, and ATX
Front I/O Ports 1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
Filters All Air Intakes
Smart Device V2 3x Fan channels with Max 10W per channel output*
2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer
RGB or Aer RGB 2 fans
Built-in noise detection module
*Note: If a splitter is used, fan control is regulated depending on the
fan connected to the 4-pin port. Do not use low-noise adapters.
LED Strip(s) 2 integrated addressable LED strip
Vertical GPU Mount 2 Slots
Included Accessories Installation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays 2.5': 2+1
3.5': 2+1
Expansion Slots 7
Radiator Support Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Fan Support Front: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs Aer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
Clearance Cable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm
with front watercooler installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along
bottom panel)
Compatibility NVIDIA GeForce RTX 30 series case compatibility chart
Warranty 2 Years
Model Number CA-H510i-B1



Kasa Tipi	Tower
Renk	Siyah
Dahili Power Supply	Yok
Aktif PFC	Var
Fan Aydınlatması	Var
Fan Sayısı (Adet)	3,0
5 1/4'Optik Sürücü Yuvası Adet	YOK



Ürün Adı: NZXT CA-H510I-B1 H510i Compact Mid Tower Siyah/Siyah Kasa

Ürün Kodu: CA-H510I-B1
