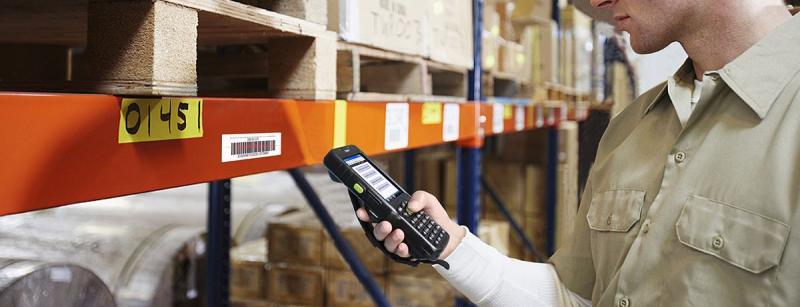

POSSIFY AUTOID6L PDA WCE6.0/3,5''/2D/WI-FI/BT/GPRS/RFID AUTOID6L-W-S5W1

1. AUTOID®
6L-W PERFORMANCE CHARACTERISTICS
CPU Ti ARM®
Cortex™-A8 AM3715/DM3730 1GHz
Operating System Microsoft®
Windows®
CE 6.0
RAM 512MB
ROM 512MB
User Storage 4GB (Built-in and irremovable)
Storage Expansion Micro SD Card, 32GB SDHC compatible
Interface/Communication Standard Micro USB interface, Support USB2.0
High Speed
Keypad
28keys
LED (buttons with backlight)
Display 3.5' industrial color LCD, resistive touch,320*240
Power Supply
Removable 3.7V 3800mAh rechargeable Li-ion battery
Built-in backup battery: non-removable 3.7V/100mAh rechargeable battery
Charging
Special 5V voltage charger, 1.5A current
PC USB charging 0.5A current
Intelligently identify PC and special charger to switch 0.5A/1.5A
charging
charging
current
Notification Sound, Vibrator, LED indicator
Audio Built-in loudspeaker
Dimension 169(H) ×72(W) ×36(T) mm, (width 72mm without side keys)
Weight (including
standard battery)
313g (Including battery depends on different configurations)
Operating Temp -20? to +50?
Storage Temp -40? to +60?
Humidity 5% to 95% RH non-condensing
Sealing grade IP65
Drop Specification Multiple 5 ft./1.5m drops to concrete resistance
Tumble Specification 1000 tumbles from 0.5 meter (equal to around 2000
impacts) resistance
ESD ±15kV Air discharge±8kV direct discharge
JIANGSU SEUIC TECHNOLOGY CO., LTD
2. AUTOID®
6L-W DATA CAPTURE OPTIONS
Function 1 1D Advanced Laser Scan Engine (Option 1)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light
Sunlight: 10,000ft. Candles (107,640Lux)
Artificial light: 450ft.candles (4,844Lux)
Scan Depth 15.2cm (4mil), 64.1cm (55mil)
Scan Frequency min.92/sec, model: 104, max.116 times (bi-directional)
Scan Width 47°/35°/10°
Laser Safety Grade Class II
Code Support
UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Codabar,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc.
Function 2 1D Laser Scan Engine (Option 2)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Immunity Sunlight:10,000ft
Scan Depth 13.5cm (5mil), 91cm (55mil)
Scan Frequency 100±10/sec.
Scan Width 47°
Laser Power 1.7mw±0.2mw (Standard)
Code Support
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code
11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI,
RSSI
RSSI
etc.
Function 3 2D Advanced Image Scan Engine (Option 3)
Sensor Resolution 752(H)×480(V) Pixel Wide VGA
Rotate 360°
Pitch Angle ±60°
Skew Tolerance ±60°
JIANGSU SEUIC TECHNOLOGY CO., LTD
VLD 655nm±10nm
LED 635nm±5nm
Ambient Light (Sunlight) 9000 ft. Candles (96,900Lux)
Optional Model:SR
Offers the best range and performance on medium and low density 1D and
2D barcodes
Optional Model:DL
Optimized for medium to high density bar codes as well as the bar codes
found on driver s licenses and other identification documents, ideal
for
for
border crossings as well as the healthcare and electronics industry
Optional Model:HD Optimal design special for ultrahigh density 1D and
2D bar code
Function 4 2D Image Scan Engine (Option 4)
Field of View Horizontal:41.4 ,Vertical:32.2
Sensor Resolution 838(H) x 640(V) Pixel Wide
Rotate 360°
Pitch Angle ±45°
Skew Tolerance ±65°
VLD 528nm±10nm
LED 617nm±10nm
Ambient Light (Sunlight) 0-100000 Lux
Code Support
1D CODE: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32,
Code 93, Codabar/NW7, Interleaved2 of 5, Code 2 of 5, Matrix 2 of 5,
MSI,
MSI,
Telepen, Trioptic, China Post; 2D Stacked: PDF417, MicroPDF417,
GS1Composite;
2D matrix code: Aztec Code, Data Matrix, QR Code, Micro QR Code,
MaxiCode, Han Xin Code;
Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British
Post,
Post,
Canadian Post, Japanese Post,Netherlands (KIX) Post,Postnet, Planet
Code;
OCR option: OCR-A, OCR-B, E13B (MICR)
Function 5 RFID Read/write (HF)
Standards Support ISO15693, ISO14443A
Operating Frequency HF frequency band 13.56MHz
Reading Range 0~5cm (ISO15693), 0-4cm (ISO14443A)
Function 6 Camera
Maximum Resolution 2592*1944, 2048*1536, 1600*1200, 1024*768
Photo Function Auto-focus
JIANGSU SEUIC TECHNOLOGY CO., LTD
3. AUTOID®
6L-W WIRELESS DATA COMMUNICATIONS
Function 1 WLAN WIFI
Protocol IEEE 802.11b/g/n
Frequency Range Depends on different countries (regions), 2.4GHz to
2.5GHz in normal
Working Channel CH1 to CH14
Security
OPEN, WEP, WPA-PSK (TKIP), WPA2-PSK (TKIP+AES) (MS-CHAP),
TTLS(MS-CHAP) (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS,
PEAP(MS-CHAP v2), WPA-AES, Support CCX v4 etc.
Output Power
802.11b /11Mbps: 15 dBm ± 1.5 dB @ EVM ? -9dB
802.11g /54Mbps: 15 dBm ± 1.5 dB @ EVM ?-25dB
802.11n /72Mbps: 15 dBm ± 1.5 dB @ EVM ?-28dB
Sensitivity
802.11b @8% PER:
- 1Mbps PER @ -93 dBm, typical
802.11g @10% PER:
- 6Mbps PER @ -89 dBm, typical
802.11n @10% PER:
- MCS=0 PER @ -86 dBm, typical
Transmission Distance >150 meters (Industrial grade AP, Open regions)
Data Rate
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps (20MHz, Long GI,
800ns)
800ns)
802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps (20MHz, short
GI,
GI,
400ns)
Antenna Internal single antenna
Flashlight Support flashlight (support BSI)
Pixel 5.0 mega-pixel
Function 7 GPS Location information collection
Hot Start <2 seconds (Average)
Warm Start
(autonomous)
<35 seconds (Average)
Warm Start (with CGEE) 10 seconds (Typical)
Cold Start <35 seconds (Average)
Accuracy 5 meters
JIANGSU SEUIC TECHNOLOGY CO., LTD
Function 2 WWAN WCDMA (telecommunication non-supportable )
Frequency Band
GSM/GPRS/EDGE: Dual band GSM 900/1800MHz
UMTS/HSPA+: Dual band UMTS 900/2100MHz
Transmitted Power
Class 4 (+33dBm ±2dB): EGSM900
Class 1 (+30dBm ±2dB): GSM1800
Class E2 (+27dBm ± 3dB): GSM 900 8-PSK
Class E2 (+26dBm +3 /-4dB): GSM 1800 8-PSK
Class 3 (+24dBm +1/-3dB): UMTS 2100, WCDMA FDD BdI
Class 3 (+24dBm +1/-3dB): UMTS 900, WCDMA FDD BdVIII
Communication Rate
HSPA features:
3GPP Release6, 7 Maximum downlink data transmission: 7.2Mbps
Maximum uplink data transmission: 5.7Mbps UMTS features:
3GPP Release 4:
PS domain (data) - 384 kbps DL / 384 kbps UL CS domain (voice) - 64
kbps DL / 64 kbps UL GSM/GPRS/EGPRS features:
GPRS:
GPRS data downlink transmission maximum: 85.6kbps (Class 12, up and
down symmetric)
GPRS data uplink transmission maximum: 85.6kbps (Class 12, up and
down symmetric)
Encoding format: CS-1; CS-2; CS-3; CS-4 EGPRS:
The maximum rate per time slot is 59.2 Kbps; (MCS-9)
The maximum rate of EGPRS 8 slot is 474 Kbps (MCS-9).
Function 3 WPAN Bluetooth
Standard Bluetooth 2.1 (EDR)
Power Class 2
Distance >20 meters (Industrial grade Bluetooth adapter)
4. AUTOID®
6L-W THE THIRD PARTY APPLICATION SUPPORT
System Software SEUIC s SDK
System Programming
Environment
Visual Studio 2008 (Support .NET CF 3.5)
5. AUTOID®
6L-W PERIPHERALS AND ACCESSORIES
Standard Accessories
Universal Adapter×1, USB Cable×1, Touch Pen×1, Hand Belt×1,
battery×1
Optional Accessories
Single Slot Battery Charger, Four Slot Battery Charger, Auto Adapter,
Single Slot Charging Dock, Single Slot Charging Dock (Include Ethernet
interface), handle, etc.
