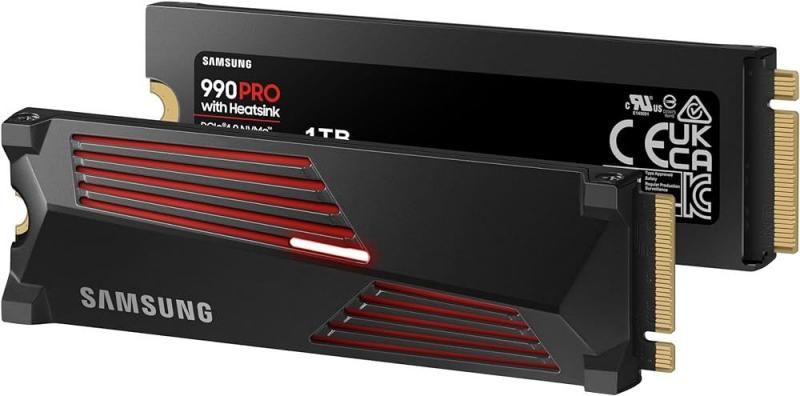

SAMSUNG MZ-V9P1T0CW 1TB 990 PRO M.2 NVME SSD 7450/6900

1TB 990 PRO M.2 NVME SSD 7450/6900

Specifications
InterfacePCIe Gen 4.0 x4, NVMe 2.0

Sequential ReadUp to 7,450 MB/s * Performance may vary based on system
hardware <(>&<)> configuration

Sequential WriteUp to 6,900 MB/s * Performance may vary based on system
hardware <(>&<)> configuration

Warranty5-Year Limited Warranty or 600 TBW Limited Warranty

ApplicationClient PCs, Game Consoles

WeightMax 28.0g Weight
Specifications Detail
General Feature
ApplicationClient PCs, Game Consoles

Rated Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable
capacity may be less (due to formatting, partitioning, operating system,
applications or otherwise)

Form FactorM.2 (2280)

InterfacePCIe Gen 4.0 x4, NVMe 2.0

Dimension (WxHxD)80 x 24.3 x 8.2 mm (with heatsink)

WeightMax 28.0g Weight

Storage MemorySamsung V-NAND 3-bit MLC

ControllerSamsung in-house Controller

Cache MemorySamsung 1GB Low Power DDR4 SDRAM
Special Feature
TRIM SupportSupported

S.M.A.R.T SupportSupported

GC (Garbage Collection)Auto Garbage Collection Algorithm

Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667
(Encrypted drive)

WWN SupportNot supported

Device Sleep Mode SupportYes
Performance
Sequential ReadUp to 7,450 MB/s * Performance may vary based on system
hardware <(>&<)> configuration

Sequential WriteUp to 6,900 MB/s * Performance may vary based on system
hardware <(>&<)> configuration

Random Read (4KB, QD32)Up to 1,200,000 IOPS * Performance may vary based
on system hardware <(>&<)> configuration

Random Write (4KB, QD32)Up to 1,550,000 IOPS * Performance may vary
based on system hardware <(>&<)> configuration

Random Read (4KB, QD1)Up to 22,000 IOPS * Performance may vary based on
system hardware <(>&<)> configuration

Random Write (4KB, QD1)Up to 80,000 IOPS * Performance may vary based on
system hardware <(>&<)> configuration
Environment
Average Power Consumption (system level)*Average: 5.4 W*Maximum: 7.8 W
(Burst mode)* Actual power consumption may vary depending on system
hardware <(>&<)> configuration

Power consumption (Idle)Max. 50 mW * Actual power consumption may vary
depending on system hardware <(>&<)> configuration

Allowable Voltage3.3 V ± 5 % Allowable voltage

Reliability (MTBF)1.5 Million Hours Reliability (MTBF)

Operating Temperature0 - 70 ? Operating Temperature

Shock1,500 G <(>&<)> 0.5 ms (Half sine)
Accessories
Installation KitNot Available
Software
Management SWMagician Software for SSD management
Warranty
5-Year Limited Warranty or 600 TBW Limited Warranty

Kapasite	1 TB
Sıralı Okuma Hızı	7400MB/s
Sıralı Yazma Hızı	6900MB/s
Arabirim	PCIe
Disk Tipi	M2
İncelik	2.38 mm
Satış Garanti Süresi (ay)	24
EAN	8806094413748

Ürün Adı: SAMSUNG MZ-V9P1T0CW 1TB 990 PRO M.2 NVME SSD 7450/6900

Ürün Kodu: MZ-V9P1T0CW
