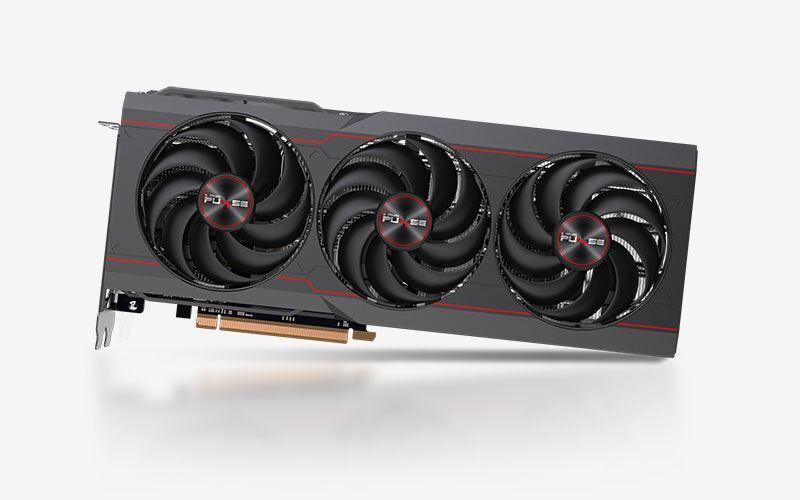

SAPPHIRE 11305-02-20G RX 6800 16GB 256 Bit GDDR6 PCI-Express 4.0 Ekran Kartı

GPU
AMD Radeon™ RX 6800 Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2170 MHz
Game Clock: Up to 1950 MHz
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP(Total Graphics Power). Actual
individual game clock results may vary.
Stream Processors
3840
Infinity Cache
128MB
Ray Accelerators
60
Memory Size/Bus
16GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
1x HDMI
3x DisplayPort
BIOS Support
Dual UEFI
Game Index
4K
Sapphire Features
Dual BIOS
Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming
Cooling
3 Fans
Form Factor
2.5 slot, ATX
Dimension: 303(L)X 127.3(W)X 53.8 (H)mm
Power Consumption
280W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating
system required
*Does not support all features including but not limited to Hardware
Raytracing
System Requirement
Minimum 650 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot
available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

İşlemci Tipi	AMD
Grafik İşlemci	RX 6800
Bellek Arayüzü	256 bit
Ram (Sistem Belleği)	16 GB
Bellek Tipi	GDDR6
HDMI	1
DVI-D	Yok
DVI-I	Yok
DP (Display Port)	3
mDP (mini Display Port)	Yok
VGA (Analog D-Sub)	Yok
DirectX	12
Güç Gereksinimi	300W
Sıvı Soğutma	Yok
Çekirdek Hızı Aralığı	1500 MHz =>
Form Faktör	ATX
Ekran Kartı Fan Sayısı	3
Satış Garanti Süresi (ay)	24
EAN	4895106289987

Ürün Adı: SAPPHIRE 11305-02-20G RX 6800 16GB 256 Bit GDDR6 PCI-Express 4.0 Ekran Kartı

Ürün Kodu: 11305-02-20G
