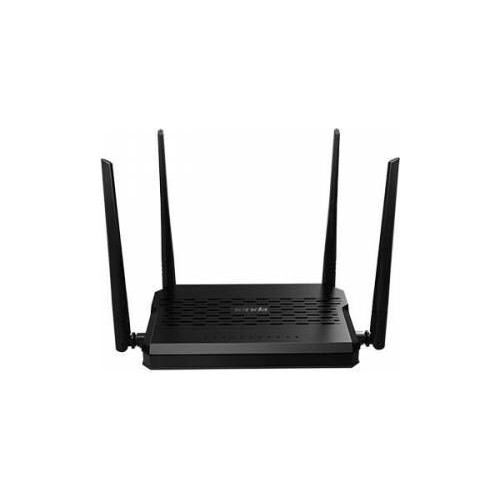

TENDA D305 300Mbps 4x5DBi Adsl2+ Modem/Router

IEEE 802.3, 802.3u
Arayüz
RJ11 × 1
Power Jack × 1
USB2.0 × 1
10/100Mbps LAN × 3
10/100Mbps WAN × 1
Anten
5dBi External Omni directional × 4
Buton
WLAN ON/OFF
RST/WPS
Power
Güç Adaptörü
Input: 100 - 240V 50/60Hz
Output: 12V1A
Boyut
190 × 125 × 26.5mm
LED
Power, SYS, Internet, USB, WPS, WLAN, LAN(1,2,3,4), DSL
Hız
300Mbps
Sıklık
2.4GHz
Temel Özellikler
Wireless ON/OFF
SSID Broadcast ON/OFF
RF Power Setting Normal/Enhanced
Country Options
Channel: Auto, 1-13
Bandwidth: Auto, 20MHz, 40MHz
Client List
WDS
Çalışma Modu
ADSL2+ Modem Router, Wireless Router
İleri Fonksiyonlar
PVC Configuration
MAC Clone
DSL Settings
Interface Grouping
QoS( Based IP )
DHCP
DHCP Server
Client List
Address Reservation
Sanal Sunucu
Port Forwarding
Port Triggering
DMZ
UPnP
Güvenlik
IP, MAC Filtering
IPv6
Support 6RD & DS-Lite, IPv6 and IPv4 dual stack
Yönetim
LAN IP Setting
System Log
Device Info
Remote Management
Internet Time
Backup & Restore Backup
Restore Default
Diagnostic Tools
Web Based Firmware Upgrade
Access Control
Diğer
DDNS?IGMP Multicast?TR069
Sıcaklık
Operating Temperature: 0? ~ 40?
Storage Temperature: -40ºC~70ºC
Nem
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Varsayılan Ayarlar
IP Address: 192.168.1.1
Login Username: admin Login Password: admin
Belgeleme
CE, FCC, RoHS
Paket İçeriği
D305 × 1
Quick Installation Guide x 1
Power Adapter x 1
Ethernet cable (RJ45) x 1
Telephone cable ( RJ11) × 2

Türü	ROUTER
Standart	IEEE 802.11B
Data Transfer Hızı	300,0
Radyo Frekansı	2.4 GHZ
Bağlantı Şekli	USB
LAN Port Sayısı	3,0
Satış Garanti Süresi (ay)	24
EAN	6932849430011

Ürün Adı: TENDA D305 300Mbps 4x5DBi Adsl2+ Modem/Router

Ürün Kodu: D305
