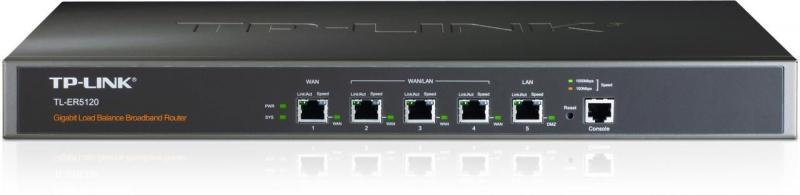

TP-LINK TL-ER5120 Gigabit 5Port Load Balance Multi-WAN Router

5-port Gigabit Multi-WAN Load Balance Router for Small and Medium
Business, including 3 Configurable WAN/LAN Ports, 1 Hardware DMZ port,
support maximal 4 WAN ports, Load Balance, Advanced Firewall, Bandwidth
Control, Session Limit, PPPoE Server, IM/P2P blocking, Port Mirror,
DDNS, UPnP, Port VLAN, VPN pass-through
DONANIM ÖZELLİKLERİ
- Standardlar ve Protokoller:
IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
- Arabirim:
1 Fixed 10/100/1000Mbps WAN Port
3 Free Changeable 10/100/1000Mbps WAN/LAN Ports
1 Fixed 10/100/1000Mbps LAN/DMZ Port
1 Console Port (RJ-45 On RS232)
- Ağ Medyası:
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Flash: 8MB
- DRAM: DDRII 128MB
- LED: PWR, SYS, Link/Act, Speed, WAN, DMZ
- Düğmeler: Reset Button
- Boyutlar:
17.3x8.7x1.7 in.(440x220x44 mm)
19-inch Standard Rack-Mount Width, 1U Height
- Güç Kaynağı:
Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
PERFORMANS
- Eş Zamanlı Oturum: 120000
- NAT Throughput: 350Mbps
TEMEL FOKSİYONLAR
- DHCP:
DHCP Server/Client
DHCP Reservation
- MAC Klonlama: Modify WAN/LAN/DMZ MAC Address
- Switch Ayarı:
Port Mirror
Rate Control
Port Config
Port VLAN
- WAN Bağlantı Tipi: Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual
Access, BigPond
GELİŞMİŞ FONKSİYONLAR
- NAT:
One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
- Routing:
Static Routing
Dynamic Routing (RIP v1/v2)
- Sistem Modu: NAT, Non-NAT, Classical Routing
- Trafik Kotrolü:
IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit
- Yük Paylaşımı:
Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection
GÜVENLİK
- ARP Denetimi:
Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
- DMZ Portu: 1 Hardware DMZ Port
- Filtreleme:
MAC Filtering
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies)
- Saldırı Koruması:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
- Uygulama Kontrolü: IM, P2P, Web IM, Web SNS, Web Media, Protocol,
Proxy Blocking
YÖNETİM
- Bakım:
Web/CLI/Telnet Management Interface
Remote Management
Export & Import Configuration
NTP Synchronize
Syslog Support
- Servis:
PPPoE Server
E-Bulletin
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
DİĞERLERİ
- Sertifika: CE, FCC, RoHS
- Paket İçeriği:
TL-ER5120
Resource CD
Power Cord
Rack-mount Kit
Installation Guide
- Sistem Gereksinimleri:
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS,
NetWare®, UNIX® or Linux
Ortam Operating Temperature: 0C~40C
Storage Temperature: -40C~70C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

LAN Port Sayısı	3,0
Türü	ROUTER
LAN Port Tipleri	1x10/100Base-T (RJ-45)
VolP Desteği	YOK
Satış Garanti Süresi (ay)	36
EAN	6935364041113,6935364041274,6935364081225

Ürün Adı: TP-LINK TL-ER5120 Gigabit 5Port Load Balance Multi-WAN Router

Ürün Kodu: TL-ER5120
