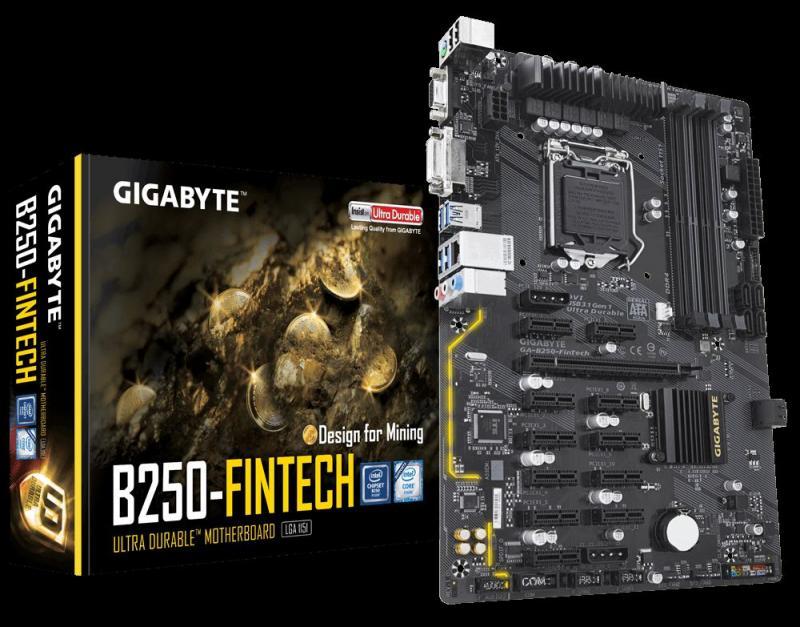

GIGABYTE GA-B250-FINTECH Intel B250 1151 DDR4 2400MHz DVI Anakart

CPU
Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel®
Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® B250 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th Generation
processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor- Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the
audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
11 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
USB
Chipset:
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the
cooler you install.
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits
(for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.
Form Factor
ATX Form Factor; 30.5cm x 20.0cm
Remark
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE website.

Soket Cinsi	SOKET 1151
Chip Set	INTEL B250
Form Faktörü	ATX
RAM Tipi	DDR4
Dahili Grafik	VAR
RAM Hızı (MHz)	2133,0,2400,0
Maksimum Bellek	64 GB
İşlemci Desteği	6. Nesil Intel Core i3,6. Nesil Intel Core i5,6. Nesil Intel Core i7,7. Nesil Intel Core i3,7. Nesil Intel Core i5,7. Nesil Intel Core i7,Intel Celeron,Intel Pentium
PCI-Ex16 Slot Sayısı	1
Bellek Yuvası Sayısı	4
Satış Garanti Süresi (ay)	36
EAN	4719331802714

Ürün Adı: GIGABYTE GA-B250-FINTECH Intel B250 1151 DDR4 2400MHz DVI Anakart

Ürün Kodu: GA-B250-FINTECH
