GA-H110-D3A
CPU
1.Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™
i5 processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1151 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.Intel® H110 Express Chipset
Memory
1.2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4
GB of physical memory is installed, the actual memory size displayed
will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR4 2400/2133 MHz memory modules
4.Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
5.Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation
processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support: 1.1 x D-Sub
port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
Audio
1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the
audio driver.
4.Support for S/PDIF Out
LAN
1.Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2.5 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA
SSD support)
2.4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
USB
Chipset: 1.4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports
available through the internal USB header)
2.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.2 x PCIe power connectors
4.1 x CPU fan header
5.3 x system fan headers
6.4 x SATA 6Gb/s connectors
7.1 x M.2 Socket 3 connector
8.1 x front panel header
9.1 x front panel audio header
10.1 x S/PDIF Out header
11.1 x USB 3.1 Gen 1 header
12.2 x USB 2.0/1.1 headers
13.1 x Trusted Platform Module (TPM) header
14.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 mouse port
2.1 x PS/2 Keyboard port
3.1 x parallel port
4.1 x serial port
5.1 x D-Sub port
6.2 x USB 3.1 Gen 1 ports
7.2 x USB 2.0/1.1 ports
8.1 x RJ-45 port
9.3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
1.iTE® I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
* Whether the fan speed control function is supported will depend on
the cooler you install.
BIOS
1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2.Support for Q-Flash
3.Support for Xpress Install
Bundle Software
1.Norton® Internet Security (OEM version)
2.cFosSpeed
Operating System
1.Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits
(for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.
Form Factor
1.ATX Form Factor; 30.5cm x 19.0cm
Remark
1.Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
2.Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE website.
CPU
1.Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™
i5 processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1151 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.Intel® H110 Express Chipset
Memory
1.2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4
GB of physical memory is installed, the actual memory size displayed
will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR4 2400/2133 MHz memory modules
4.Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
5.Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation
processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support: 1.1 x D-Sub
port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
Audio
1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the
audio driver.
4.Support for S/PDIF Out
LAN
1.Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2.5 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA
SSD support)
2.4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
USB
Chipset: 1.4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports
available through the internal USB header)
2.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.2 x PCIe power connectors
4.1 x CPU fan header
5.3 x system fan headers
6.4 x SATA 6Gb/s connectors
7.1 x M.2 Socket 3 connector
8.1 x front panel header
9.1 x front panel audio header
10.1 x S/PDIF Out header
11.1 x USB 3.1 Gen 1 header
12.2 x USB 2.0/1.1 headers
13.1 x Trusted Platform Module (TPM) header
14.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 mouse port
2.1 x PS/2 Keyboard port
3.1 x parallel port
4.1 x serial port
5.1 x D-Sub port
6.2 x USB 3.1 Gen 1 ports
7.2 x USB 2.0/1.1 ports
8.1 x RJ-45 port
9.3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
1.iTE® I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
* Whether the fan speed control function is supported will depend on
the cooler you install.
BIOS
1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2.Support for Q-Flash
3.Support for Xpress Install
Bundle Software
1.Norton® Internet Security (OEM version)
2.cFosSpeed
Operating System
1.Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits
(for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.
Form Factor
1.ATX Form Factor; 30.5cm x 19.0cm
Remark
1.Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
2.Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE website.
| Soket Cinsi | SOKET 1151 |
| Chip Set | H110 |
| Form Faktörü | ATX |
| RAM Tipi | DDR4 |
| Dahili Grafik | VGA |
| RAM Hızı (MHz) | 2133,0,2400,0 |
| Maksimum Bellek | 32 GB |
| İşlemci Desteği | 6. Nesil Intel Core i3,6. Nesil Intel Core i5,6. Nesil Intel Core i7,7. Nesil Intel Core i3,7. Nesil Intel Core i5,7. Nesil Intel Core i7 |
| PCI-Ex16 Slot Sayısı | 1 |
| Bellek Yuvası Sayısı | 2 |
| Satış Garanti Süresi (ay) | 36 |
| EAN | 4719331801847 |

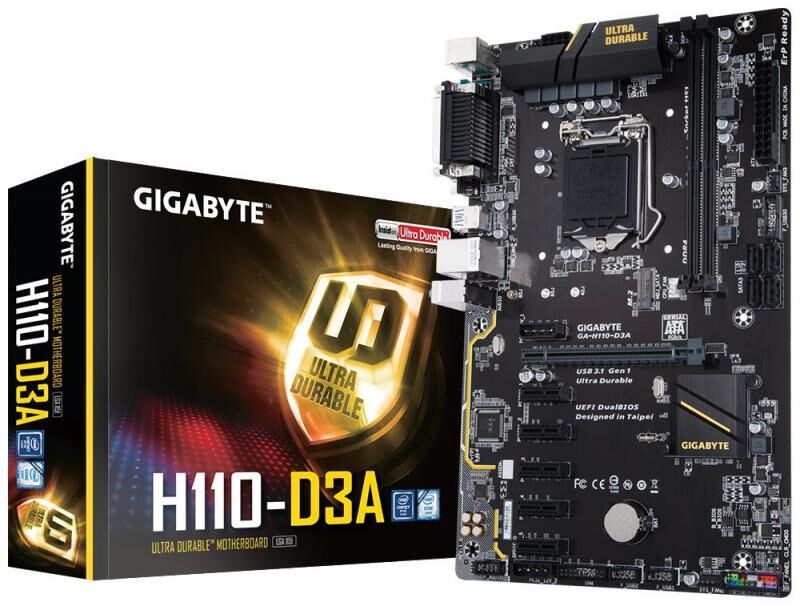

Ürün Adı: GIGABYTE GA-H110-D3A Intel H110 1151 DDR4 2400MHz VGA Anakart
Ürün Kodu: GA-H110-D3A
| EAN | : | 4719331801847 |
| Satış Garanti Süresi (ay) | : | 36 |
| Maksimum Bellek | : | 32 GB |
| Soket Cinsi | : | SOKET 1151 |
| Chip Set | : | H110 |
| Form Faktörü | : | ATX |
| RAM Tipi | : | DDR4 |
| Dahili Grafik | : | VGA |
| RAM Hızı (MHz) | : | 2133,0,2400,0 |
| İşlemci Desteği | : | 6. Nesil Intel Core i3,6. Nesil Intel Core i5,6. Nesil Intel Core i7,7. Nesil Intel Core i3,7. Nesil Intel Core i5,7. Nesil Intel Core i7 |
| PCI-Ex16 Slot Sayısı | : | 1 |
| Bellek Yuvası Sayısı | : | 2 |
