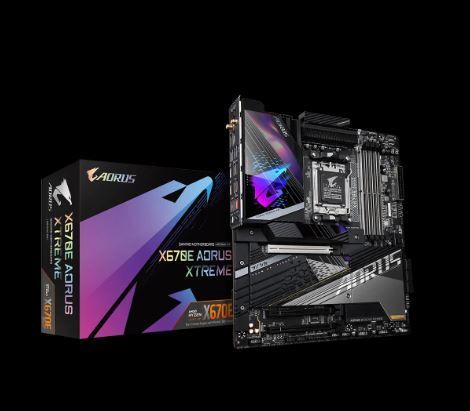

GIGABYTE X670E-AORUS-XTREME X670 AMD DDR5 AM5 8000MHZ ANAKART

AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
AMD X670
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800
(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/
4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM
capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Extreme Memory Profile (XMP) memory modules
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
Realtek® ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio
software. To configure 5.1-channel audio, access the audio software for
audio settings.
Support for S/PDIF Out
Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16
(PCIEX16)
* Actual support may vary by CPU.
* The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates
at up to x8 mode.
* For optimum performance, if only one PCI Express graphics card is to
be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD
support) (M2A_CPU)
* Actual support may vary by CPU.
3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD
support (M2B_CPU/M2C_CPU/M2D_CPU)
* Actual support may vary by CPU.
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back
panel, 1 port available through the internal USB header)
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Voltage Measurement Points
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 2 support
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
iTE® I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend
on the fan (pump) you install.
Noise detection
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard
specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Norton® Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
E-ATX Form Factor; 30.5cm x 26.9cm

İşlemci Soket Tipi	AM5
Chip Set	AMD X670
Ram Slot Sayısı	4 Adet
Max Ram Desteği	192GB
RAM Tipi	DDR5
Ram Frekans Hızı	4400 MHz,4800 MHz,5200 MHz,5600 MHz,6000 MHz,6200 MHz,6400 MHz,6666 MHz,6800 MHz,7200 MHz,7600 MHz,7800 MHz,8000 MHz
İşlemci Desteği	Ryzen 7
Anakart Boyutu	ATX
USB 3.2	6 Adet
USB 2.0	4 Adet
M.2 Slotu	4 Adet
Sata 6Gb/s	6 Adet
HDMI	Var
DP (Display Port)	Var
Lan Hızı	10/100/1000Mbps
Ses Chip Set	Realtek ALC1220
Ses Kanal Sayısı	5.1 Kanal
Satış Garanti Süresi (ay)	24
EAN	4719331848774

Ürün Adı: GIGABYTE X670E-AORUS-XTREME X670 AMD DDR5 AM5 8000MHZ ANAKART

Ürün Kodu: X670E-AORUS-XTREME
