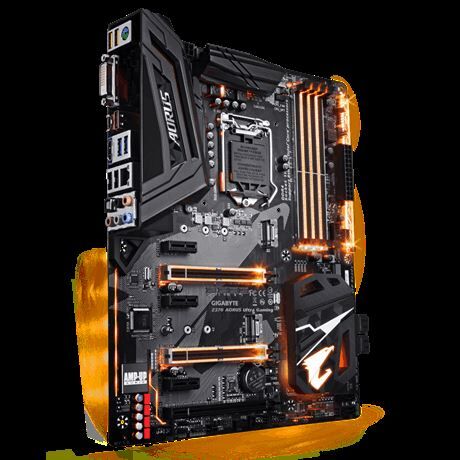

GIGABYTE Z370-AOR-ULT-GAM Intel Z370 1151 DDR4 4000MHz DVI-D/HDMI Gaming Anakart

1.Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5
processors/Intel® Core™ i3 processors in the LGA1151 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.Intel® Z370 Express Chipset
Memory
1.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.Dual channel memory architecture
3.Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) /
3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300
(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
memory modules
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1.1 x DVI-D
port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2.1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
1.Realtek® ALC1220 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out
LAN
1.Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to
be installed, be sure to install it in the PCIEX16 slot.
2.1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the
PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3.1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3
slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot
will operate at up to x1 mode.
4.3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset: 1.1 x M.2 connector (Socket 3, M key, type
2242/2260/2280/22110
2242/2260/2280/22110
PCIe x4/x2 SSD support) (M2Q_32G)
2.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe
x4/x2 SSD support) (M2A_32G)
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for
the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
1.Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2.Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™
technologies
USB
Chipset+ASMedia® USB 3.1 Gen 2 Controller: 1.1 x USB Type-C™ port on
the
the
back panel, with USB 3.1 Gen 2 support
2.1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset: 1.1 x USB Type-C™ port with USB 3.1 Gen 1 support, available
through the internal USB header
2.6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
3.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.1 x CPU fan header
4.1 x water cooling CPU fan header
5.3 x system fan headers
6.1 x system fan/water cooling pump header
7.2 x digital LED strip headers
8.2 x digital LED strip power select jumpers
9.2 x RGB (RGBW) LED strip headers
10.6 x SATA 6Gb/s connectors
11.2 x M.2 Socket 3 connectors
12.1 x front panel header
13.1 x front panel audio header
14.1 x S/PDIF Out header
15.1 x USB Type-C™ port, with USB 3.1 Gen 1 support
16.1 x USB 3.1 Gen 1 header
17.2 x USB 2.0/1.1 headers
18.1 x Thunderbolt™ add-in card connector
19.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0
_S module only)
20.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 keyboard/mouse port
2.1 x DVI-D port
3.1 x HDMI port
4.1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5.1 x USB 3.1 Gen 2 Type-A port (red)
6.4 x USB 3.1 Gen 1 ports
7.2 x USB 2.0/1.1 ports
8.1 x RJ-45 port
9.1 x optical S/PDIF Out connector
10.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out,
Line
Line
In, Line Out, Mic In)
I/O Controller
1.iTE® Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control
* Whether the fan (pump) speed control function is supported will
depend on the fan (pump) you install.
BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.Support for Q-Flash
3.Support for Xpress Install
Bundle Software
1.Norton® Internet Security (OEM version)
2.cFosSpeed
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.ATX Form Factor; 30.5cm x 24.4cm

Soket Cinsi	SOKET 1151
Chip Set	INTEL Z370
Form Faktörü	ATX
RAM Tipi	DDR4
Dahili Grafik	VAR
RAM Hızı (MHz)	2133,0,2400,0,2800,0,3333,0,3466,0,3600,0,3733,0,3800,0,3866,0,4000,0
Maksimum Bellek	64 GB
İşlemci Desteği	8. Nesil Intel Core i3,8. Nesil Intel Core i5,8. Nesil Intel Core i7
PCI-Ex16 Slot Sayısı	3
Bellek Yuvası Sayısı	4
Satış Garanti Süresi (ay)	36
EAN	4719331802219

Ürün Adı: GIGABYTE Z370-AOR-ULT-GAM Intel Z370 1151 DDR4 4000MHz DVI-D/HDMI Gaming Anakart

Ürün Kodu: Z370-AOR-ULT-GAM
